20:50 AIRMIX PUMP - INTENSIVE PUMP

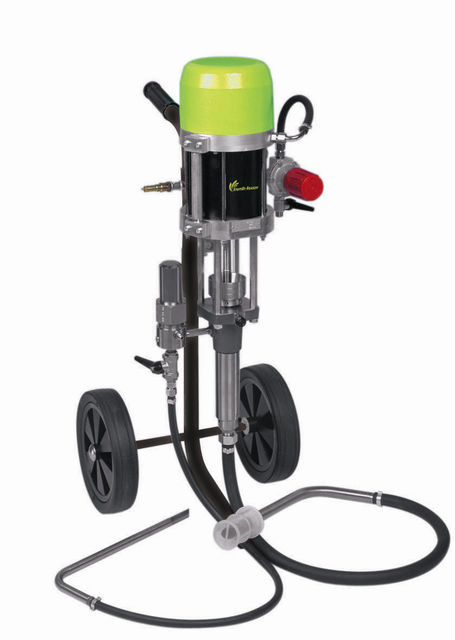

Airmix® 20.50 Pump - Stainless Steel: The 20.50 pump is ideal for large production shops where medium to heavy bodied materials will be fed to multiple guns from one fluid supply

Specifications

Compression ratio 20/1
Fluid volume per cycle (cm3) 100
Number of cycles per litre of products 10
Fluid Output at 30 cycles/mn (l/mn) 3
Free flow rate (L/mn) 6
Air consumption (m3/h) at 30 cycles/mn at 4 bar 21.6
Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 120
Maximum Fluid Temperature (°C) 60
Sound level (dBA) 78
Sealing Packings - Upper sealing Polyfluid + PTFE G
Sealing Packings - Lower sealing GT sealing
Weight (kg) 22
Wetted parts Stainless steel
Height (cm) 86.4
Width (cm) 35.6
Depth (cm) 28
