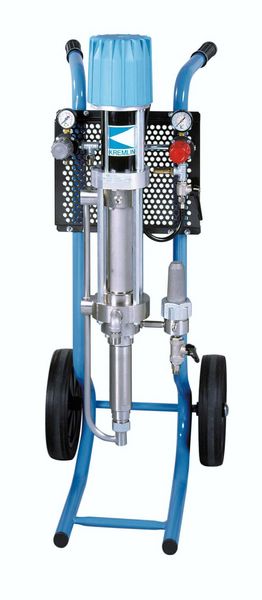

Flowmax® 40.25F Pump

Flowmax® 40.25F Pump - Stainless Steel: New generation Flowmax® pump for low volume applications

Specifications

Compression ratio 40/1
Fluid volume per cycle (cm3) 50
Number of cycles per litre of products 20
Air consumption (m3/h) at 30 cycles/mn at 4 bar 21.6
Fluid Output at 30 cycles/mn (l/mn) 1.5
Free flow rate (L/mn) 3
Maximum fluid pressure (bar) 240
Maximum Fluid Temperature (°C) 50
Maximum air inlet pressure (bar) 6
Sound level (dBA) 72
Sealing packing - Bellows Polyethylene
Sealing packing - Upper and lower GT polyethylene
Wetted parts stainless steel
Weight (kg) - wall-mounted 37
Height (cm) 97
Width (cm) 40
Depth (cm) 28
