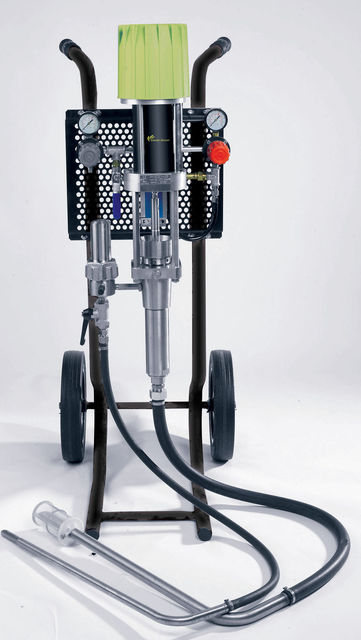

Airmix® 20.25 Pump - Stainless Steel: Ideal for feeding one or two Airmix® spray guns or one gun in a heated circulation loop for small to medium production shop, the 20.25 can pump a variety of coatings. The pump comes with the pump regulator, atomization regulator, and filter.
Specifications
Compression ratio 20/1
Fluid volume per cycle (cm3) 50
Number of cycles per litre of products 20
Fluid Output at 30 cycles/mn (l/mn) 1.5
Free flow rate (L/mn) 3
Air consumption (m3/h) at 30 cycles/mn at 4 bar 10.8
Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 120
Maximum Fluid Temperature (°C) 60
Sound level (dBA) 78
Sealing Packings - Upper sealing Polyfluid + PTFE G
Sealing Packings - Lower sealing GT sealing
Weight (kg) 17
Wetted parts Stainless steel
Height (cm) 83.8
Width (cm) 35.6
Depth (cm) 17.78
