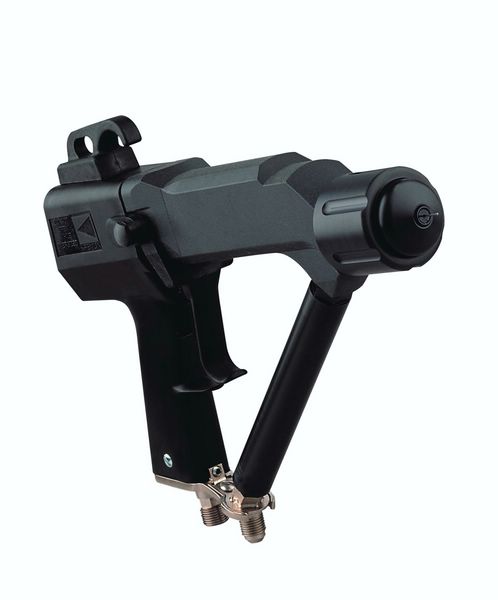

KMV 3: swirling fan for maximum wrap effect

KMV 3 round spray gun:swirling fan for maximum wrap effect
swirling fan for maximum wrap effect: Ideal for complex parts such as tubes, frameworks, chassis and tables...

SPECIFICATIONS

Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 10
Weight - w/o hose nor cable (g) 800
Fluid output (cc/mn) 1000
Fan width (cm) 20
Total Length (cm) 285 mm
Voltage cable length (m) 10 - 15
Recommended fluid viscosity 40 s CA4 maxi
Probe voltage 20 - 85 kV
Maximum current 100 µA
Maximum temperature (°C) 60
Wetted parts Stainless steel - Polyamide - PETP -Nickel - PTFE elastomer- Polyacetal - Polyethylene
