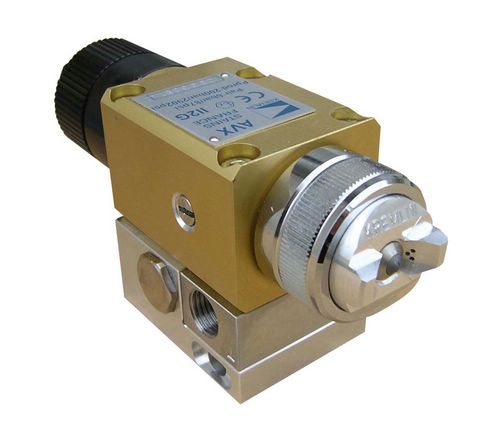

AVX Automatic with base plate

AVX Airmix® spray gun - Stainless Steel: Light AIRMIX® technology
The AVX Airmix® gun, thanks to its size and reduced weight increase the performances and the efficiency of the automatic machines.
The atomization quality offered by last generation aircaps and tips guarantees a finish quality and very important product savings.
The fluid circulation is possible at the base level or inside the gun.

Specifications

Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 200
Trigger air pressure (bar mini) 3
Recommended atomization air pressure (bar) 1 - 3
Fluid output (cc/mn) Upon tip (see Airmix® table)
Weight (g) (gun only) 452
Maximum Fluid Temperature (°C) 50
Air consumption (m3/h) 3 - 7.5
Wetted parts Stainless steel - treated stainless steel
Seat Comes in stainless steel, carbide or polyacetal as an option
