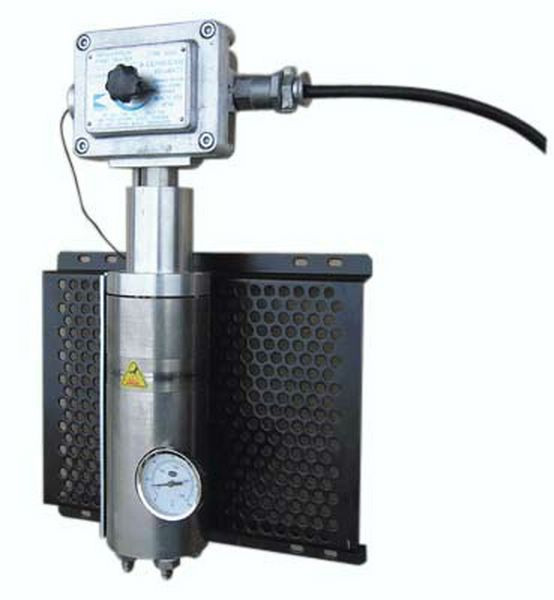

AD 60/61 Heaters: Standard and stainless steel versions for solvents only.

AD 60/61 Heaters: standard and stainless steel versions: N° d'agrément INERIS 03ATEX 0079X
Ex II 2 G
EEx d II AT3Original design ensuring optimum heat transfer with no risk of burning the paint in the heater.

Specifications

Thermostat type By fluid extension and dry contact
Thermal fuse Cut at 121°C
Thermometer Graduation 0 - 100°C
Temperature range (°C) 15 - 80
Pressure (bar) 240 maxi
Weight (kg) Aluminum : 15.5
Stainless steel : 25
Wetted parts Aluminum: aluminum body, galvanized chrome fittings
Stainless steel: stainless steel body and fittings
Room temperature (°C) 40 max
