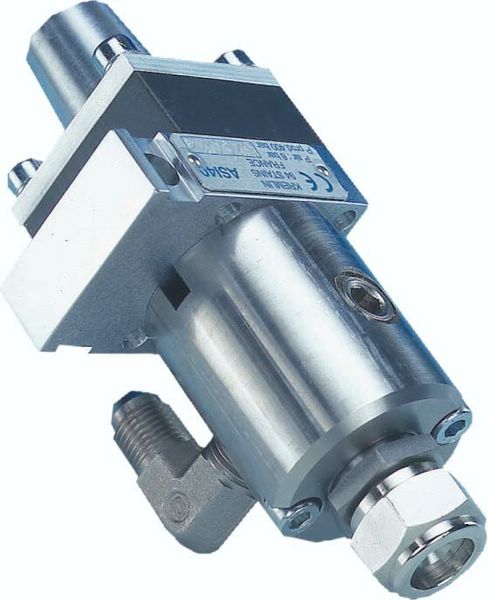

Airless® ASI 24 and 40 Automatic Spray Guns

Airless® ASI 24 and 40 Spray Guns: AIRLESS spraying, under high pressure without any atomizing air delivered to the gun, allows the spraying of high viscosity product, a precise fan width determined by the angle of the tip chosen, the spraying of thick coats of paint and allows for slow gun travel speed (0.4 m/s - 80 fpm maximum).
High output

Specifications

Trigger air pressure (bar mini) 4 (ASI 24)
5.5 (ASI 40)
Maximum fluid pressure (bar) 240 (ASI 24)
400 (ASI 40)
Fluid output (cc/mn) Upon tips
Weight (g) (gun only) 700
Maximum Fluid Temperature (°C) 50
Body of the gun Stainless steel
Wetted parts Stainless steel, treated stainless steel, PTFE
Seat Carbide
