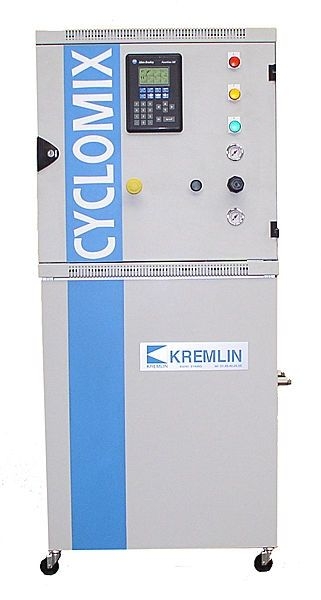

CYCLOMIX Micro User-friendly precise and control mixing of 2 components materials.
User-friendly precise and control mixing of 2 components materials.
With CYCLOMIX Micro, the mixing process is mastered and guaranteed. All technical fluid and application characteristics are fully configurable. Once programmed, CYCLOMAT Micro will automatically handle all parameters.
The programming is user-friendly and quick, with data in-putting by magnetic signal. Flushing and maintenance are very simple. In addition, the system can be controlled from inside the booth.
CYCLOMIX Micro+ allows the flushing of the catalyst fluid passages especially for water-based materials.
Safe zone installation where applicable (Directive ATEX).
Electrical Power 115 / 230V - 100W
Trigger air pressure (bar mini) 4
Product pressure (bar) 2 -175
Weight (kg) 25
Wetted parts Stainless steel and PEHD
316L stainless steel on PH version catalyst side
Mixing ratio single component and 0.6/1 to 20/1
Mixing accuracy 1%
Mixed fluid output 50 - 2000 cm3/mn
