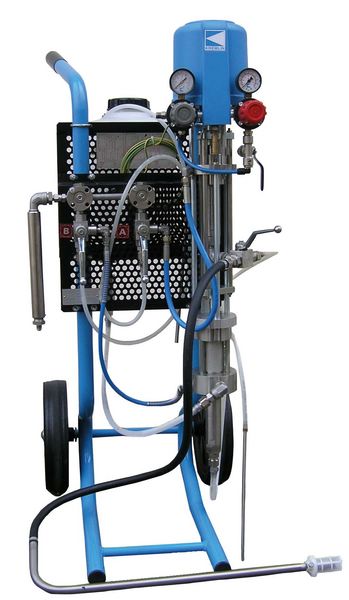

PU 2160 F pump: The Flowmax® technology

PU 2160 F pump: The Flowmax® technology, a Kremlin patented SuperLife™ bellow design, ensures a perfect mixing accuracy thanks to the total sealing without packings.
Fixed ratio: the economical and easy solution while benefitting from the Airmix® spraying
PU 2160 F are tested and comes complete ready for use.
PU 2160F are available in 4 mixing ratio versions: 1/1, 2/1, 5/1 or 10/1.

Specifications

Mixing ratio (upon version) 1/1 - 2/1 - 5/1 - 10/1
Compression ratio 10/1- 15/1 - 18/1 - 20/1
Max Fluid viscosity in CA 4 180 s
Maximum air inlet pressure (bar) 6
Sound level (dBA) 80
Weight (kg) 60
Wetted parts stainless steel, polyethylene, PTFE, nickel-coated steel
Catalyst fluid section 1/1 and 2/1: 304 stainless steel, 10/1: 316L stainless steel
