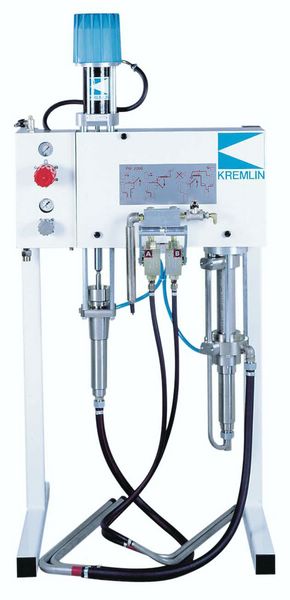

PU 2200 pump: Variable mix ratios

PU 2200 pump: Variable mix ratios
PU 2200 pump: Variable mix ratios:
The PU 2200 pumps are the first two-component pumps avaible with either standard or Flowmax® fluid sections.
The Flowmax® technology, a Kremlin patented SuperLife™ bellow design, ensures that the catalyst pump is airtight thus preventing crystallization and premature pump failure.


Mixing ratio Upon fluid section (see table)
Pressure ratio Upon fluid section and air motor choice (see table)
Max Fluid viscosity in CA 4 180 s
Maximum air inlet pressure (bar) 6
Sound level (dBA) < 80
Weight (kg) - upon configuration 130 - 150
Wetted parts Fluid section: stainless steel
Manifold:stainless steel, treated steel
Mixer: stainless steel + polyethylene

  Contact us for further enquiries


  Click the Kremlin Rexson  logo for further information
