Easy Series P20

Easy Series P20
PACKING AND PACKAGING; CONVERTING; GRAPHICS & PRINTING; BUILDING SUPPLIES;

Description

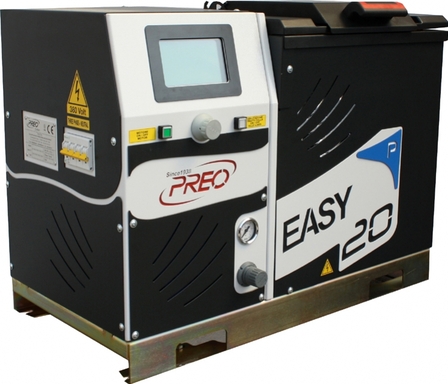

The new P20 EASY Series applicators for hot-melt adhesives are the top innovation on the international market for their simplicity of use, production flexibility, maintenance costs, quick installation, ease of safety standards, exceptional reliability and full integration with any packaging line, granting the maximum operational flexibility. The new microprocessor controls all those operations necessary to the system proper running: thermo-regulation in all different system areas, programming control of 8 glue tracks for each of the 8 independent channels. Additional features are: Economy Function, Clock, Weekly Program, Max. temperature alarm, Sequential Heating of all channels and delay Temperature Set Point lock.

NEW MELTING TANK
A large loading inlet, opened on three sides, makes the 20kg tank filling easier.

REMOVABLE COVER
Unique in its category, the cover is quickly removable in order to grant the maximum cleanliness and proper maintenance.

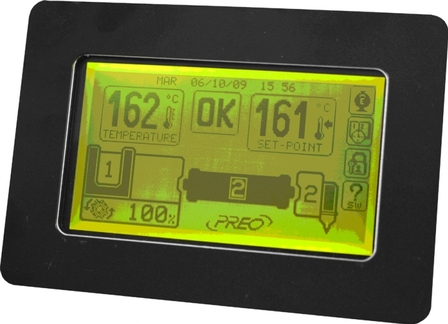

LCD DISPLAY
A new LCD display (specifically designed) graphically shows all the machine sections (tank, manifold, hoses and guns with respective parameters), allowing an immediate and extremely easy system programming also by unskilled operators, eliminating problems generated by codes and foreign languages to understand and meaning that the displays are all the same, independently of the country of use. A specific notification area controls the system status constantly and dynamically in all its operation phases. In case of eventual alarms or faults error messages are displayed.

INNOVATIVE PROGRAMMING
Another innovative feature of the new Easy Series is the “Rotary Switch”: theselector through which it is possible, with extreme easiness, to program, modifyand set section by section all those parameters intended for the system running.

PRE-INSTALLED PNEUMATIC CONNECTIONS
These allow a quick and safe system commissioning.

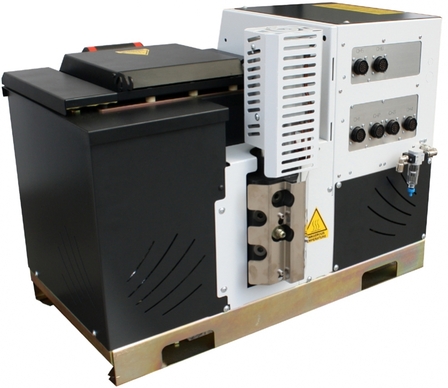

ACCESSIBILITY
All the internal parts of the applicator are easy to inspect thanks to a body systemeasy to open.

NEW “PRECS” REVERSAL SYSTEM
The innovative electronic cylinder “PRECS” allows a perfect and quick reversal preventing the lack of glue duringthis operation and granting the maximum reliability.

HIGH PRECISION PNEUMATIC PUMP
The dual effect piston pump with ratio of 14:1 is especially suitable for melting and application of adhesives and thermoplastic materials with a viscosity of up to 30,000 Cps. It is fully treated with a hard oxide coating and it is easy to remove in case of maintenance or replacement. The pump bottom can be inspected to check the suction ball status.

GLUE FILTER
Easy to access and replace, it ensures a better distribution of the adhesive preventing the nozzle clogging due to the presence of impurities in the adhesive.

AUTOMATIC PRESSURE RELEASE VALVE
Supplied as a standard, it ensures the utmost safety during the system use by automatically and safely releasing the adhesive pressure into the system in the event of an emergency

SPECIFICATIONS
